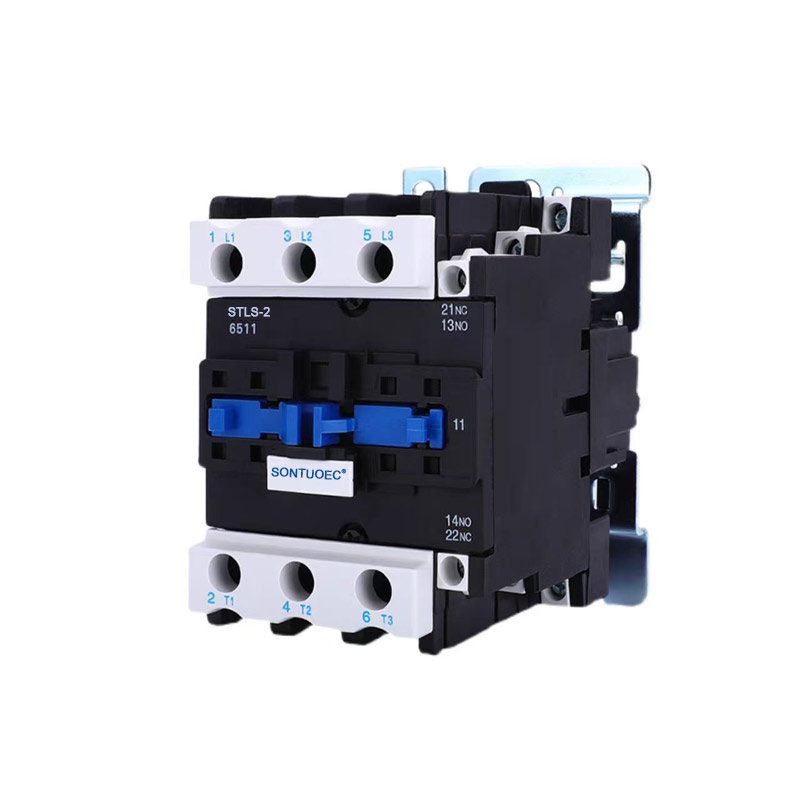

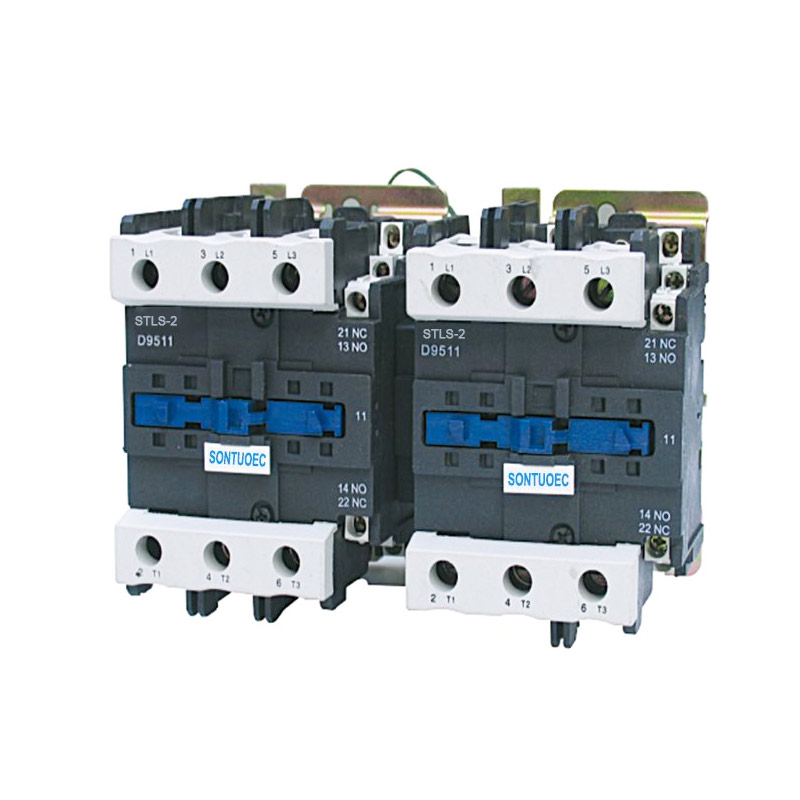

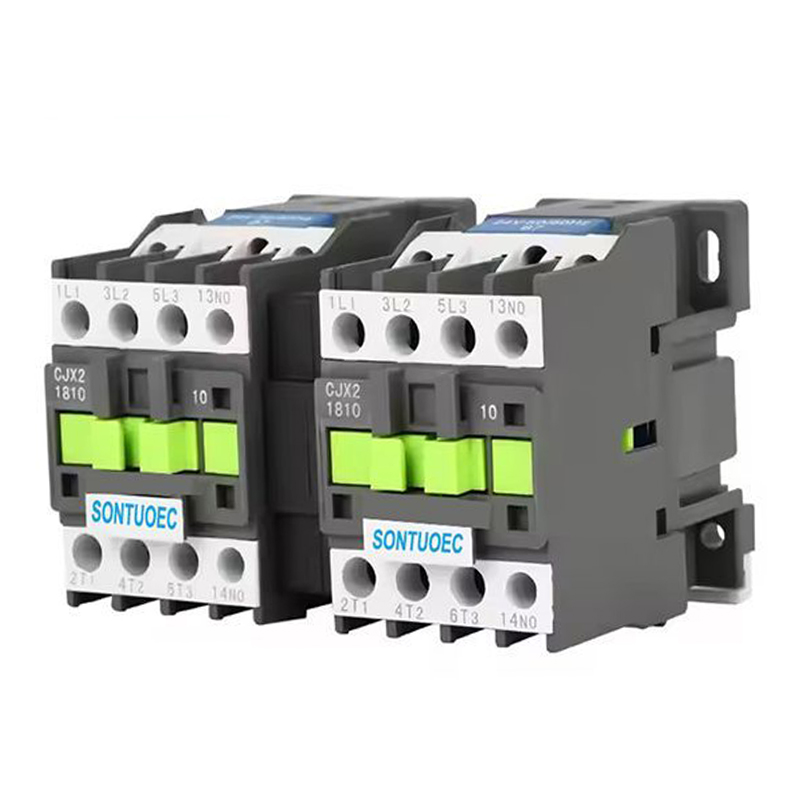

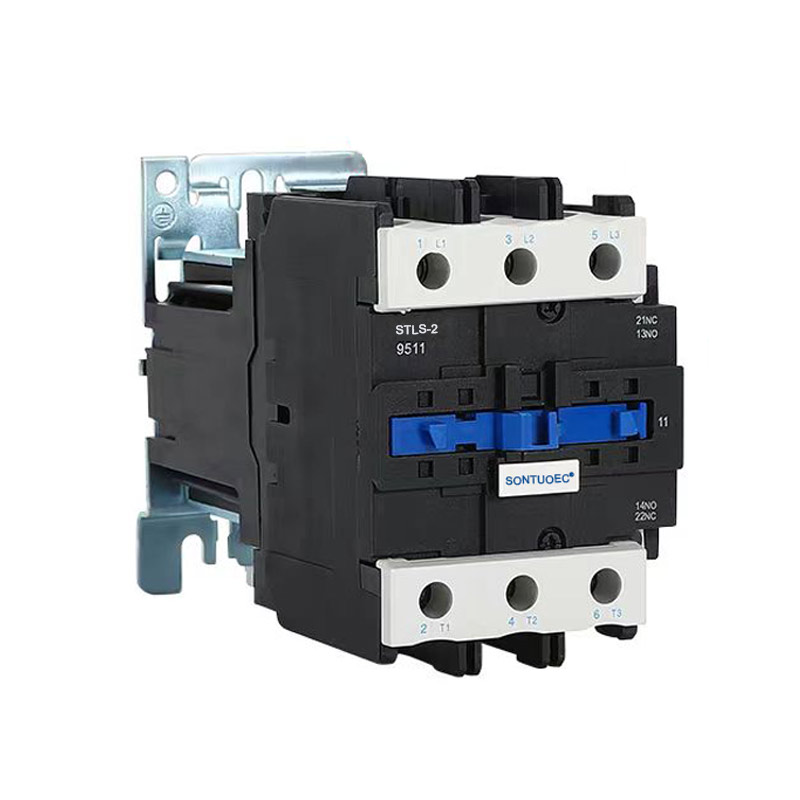

Stls-2(Cjx2) Series Mechanical Interlocking Contactor

Stls-2(Cjx2) Series Mechanical Interlocking Contactor e loketse ho sebelisoa lipotolohong ho fihla ho matla a lekantsoeng a 660V AC 50Hz, 620A ea hajoale, bakeng sa ho laola motlakase. Sesebediswa sena se kopanyang sa mochini se tiisa hore ho fetoha ha mabitso a li-contact tse peli tse fetohang. E lumellana le litekanyetso tsa IEC60947-4-1.

Mohlala:STLS-2(CJX2)

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

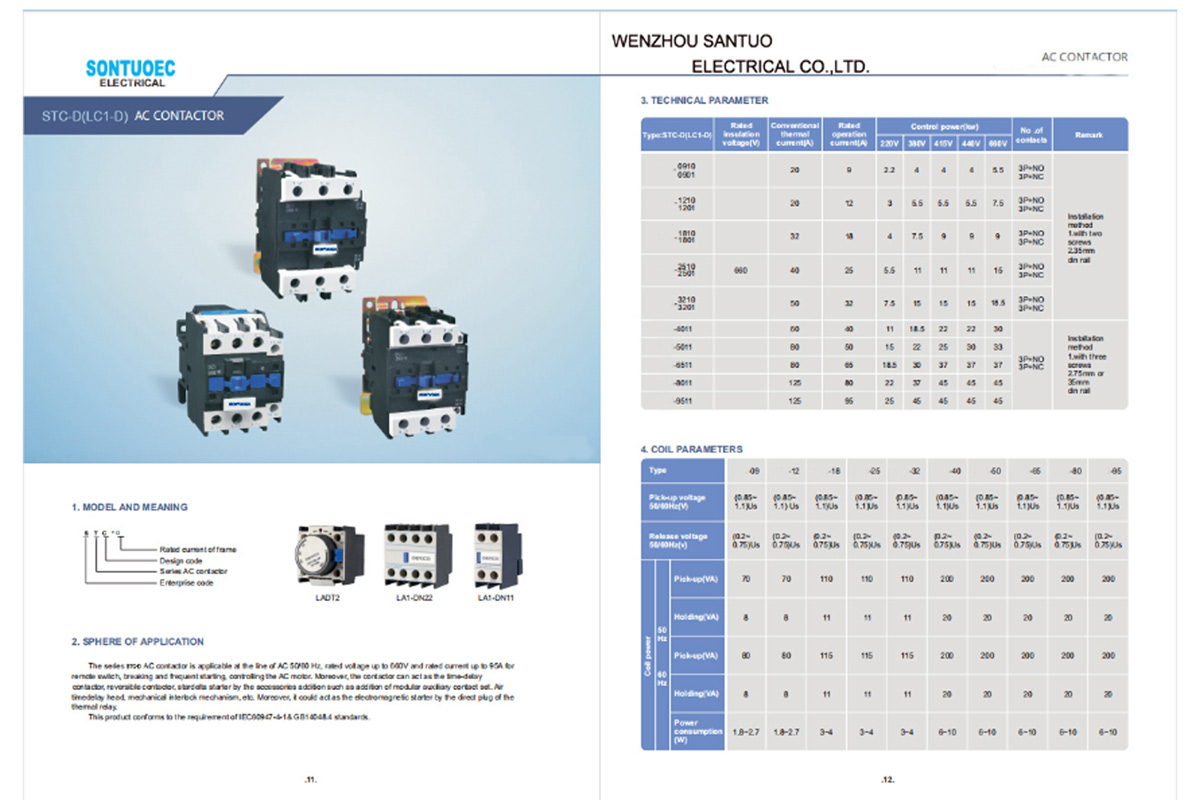

Mofuta		STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2
		9	12	18	25	32	40	50	63	80	95
									60
E lekantsoe ka matla a insulatio		660	660	660	660	660	660	660	660	660	660
mocheso o tloaelehileng		20	24	32	40	50	60	75	80	110	125
jwale		20	24	32	40	50	60	75	80	110	125
E lekantsoe ts'ebetsong		9	12	16	25	32	40	50	63	80	95
jwale		9	12	16	25	32	40	50	63	80	95
laoloa	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
matla(kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45

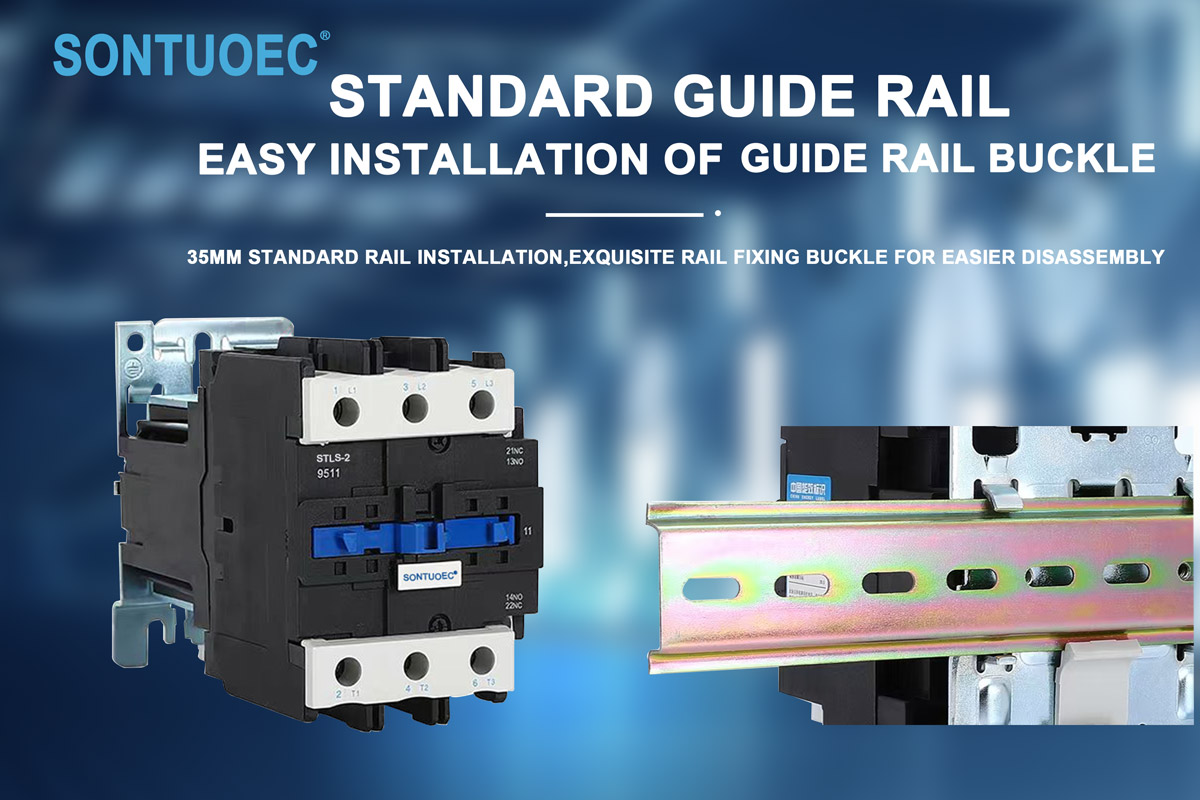

Hlokomela		Ho kenngoa ha					Ho kenngoa ha
		li-relay li ka sebelisa li-screw tse peli					li-relay li ka ba tse tharo
		hape sebelisa 35mm					screws le ho sebelisa
		seporo sa ho kenya					75mm kapa 35mm ho kenya
							seporo

Sebopeho le litšobotsi

Sebopeho:

3P AC Contactor hangata e na le sistimi ea motlakase (ho kenyeletsoa coil, konokono, joalo-joalo), sistimi ea ho ikopanya (ho kenyeletsoa khokahano ea mantlha le puisano e thusang), sesebelisoa sa ho tima arc le khetla le likarolo tse ling. Har'a bona, puisano e ka sehloohong e sebelisetsoa ho jara hona joale e phahameng, 'me ho kopana ho thusang ho sebelisetsoa ho lemoha phetiso le maikutlo a matšoao a taolo.

Likaroloana:

Ka likhokahano tse tharo tse ikemetseng, e ka laola matla a mekhahlelo e meraro le mohala o le mong oa zero ka nako e le 'ngoe.

Sistimi ea ho ikopanya e entsoe ka thepa ea boleng bo holimo e nang le conductivity e ntle le ho hanyetsa ho roala.

Sistimi ea electromagnetic e na le matla a lekaneng a ho hula le ho lokolla mabitso.

Sesebelisoa sa ho tima arc se ka tima arc ka katleho e hlahisoang ha likhokahano li khaotsoe, ho sireletsa mabitso ho senya.

Stls-2(Cjx2) Series Mechanical Interlocking Contactor e loketse ho sebelisoa lipotolohong motlakase o lekantsoeng ho fihla ho 660V AC 50Hz kapa 60Hz, o lekantsoe hajoale ho fihla ho 95A, bakeng sa ho etsa le ho pshatla, khafetsa ho qala le ho laola enjene ea AC. Ha e kopantsoe le "block block" e thusang, tieho ea nako & sesebelisoa se hokahaneng ka mochini, joalo-joalo, e fetoha sehokahanyi sa ho lieha, sehokahanyi sa mochini, se qalang sa linaleli. Ka relay ea mocheso, e kopantsoe ho qala motlakase oa motlakase. Contactor e hlahisoa ho latela IEC 60947-1.

Molao-motheo oa Ts'ebetso

Ha khoele ea 3P AC Contactor e matlafatsoa, mokokotlo oa tšepe o hlahisa matla a makenete mme o hohela sistimi ea ho ikopanya ho koala, ka hona ho hokahanya phepelo ea motlakase ea mekhahlelo e meraro le terata ea zero. Ha coil e felloa ke matla, motheo o lahleheloa ke magnetism 'me tsamaiso ea ho ikopanya e arohana tlas'a ketso ea selemo, kahoo e khaola motlakase oa mekhahlelo e meraro ho tloha moleng oa zero. Ka tsela ena, 3P AC Contactor e ka lemoha taolo e hole ea meroalo ea motlakase.

Maemo a Kopo

3P AC Contactor e sebelisoa haholo lits'ebetsong tse fapaneng tsa matla tse hlokang ho laola matla a mekhahlelo e meraro le mohala o le mong oa zero ka nako e le 'ngoe, joalo ka:

Sebaka sa li-automation tsa indasteri: se sebelisetsoa ho laola ho qala ha enjene, ho emisa le ho khutlisa ts'ebetso.

Sistimi ea matla: e sebelisetsoang ho hlokomela taolo e hole le ts'ireletso ea sistimi ea matla.

Moaho oa boiketsetso: o sebelisetsoang ho laola ho qala le ho emisa ha mabone, moea o futhumatsang moea le lisebelisoa tse ling.
