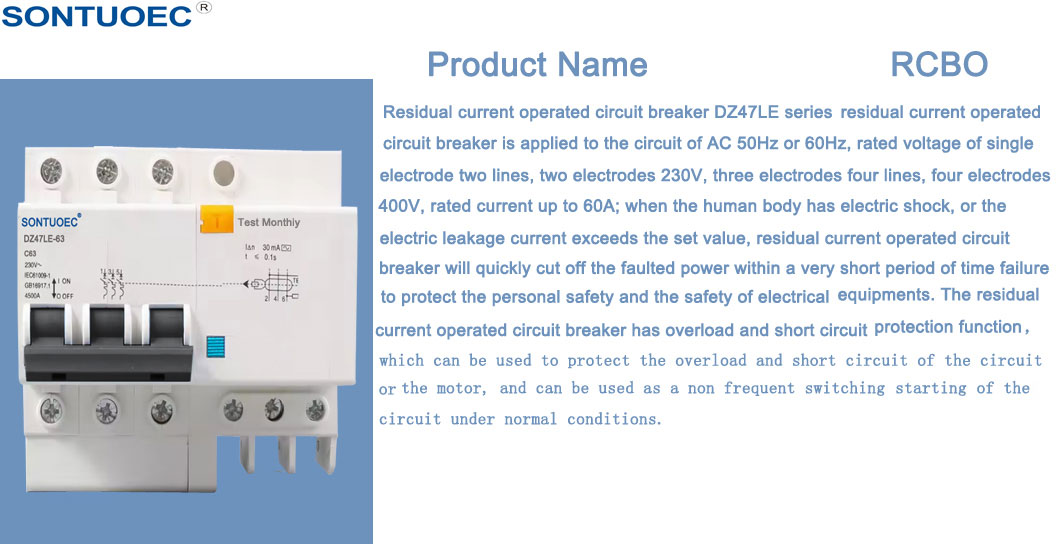

Dz47le-63 Letoto la Ponahalo e Kopanetsoeng ea Size Circuit Breaker RCBO

1.RCBO e sebelisoa haholo-holo ho AC 50Hz(60Hz), e rehelletsoeng ka motlakase oa 230/400V, e fuoe lintlha tse 6A ho isa ho 63A sistimi ea phepelo ea motlakase o tlase. RCBO e lekana le MCB + RCD mosebetsi; E sebelisoa bakeng sa ts'ireletso ea ts'ireletso ea motlakase le ts'ireletso ea motho ka tsela e sa tobang, ts'ireletso ea lisebelisoa tsa motlakase ha 'mele oa motho o thetsa motlakase kapa marang-rang a lutlang a feta boleng bo boletsoeng, ts'ireletso e fetang boima le potoloho e khuts'oane; E ka boela ea e-ba mochine o sa sebeliseng khafetsa potolohong, o sebelisoa hampe sebakeng sa bolulo le sa khoebo. E lumellana le maemo a IEC61009-1. 2.MCB e sebelisoa ho AC50/60Hz, matla a lekantsoeng a 230V3, 4 poles 400V, a fuoe lintlha tsa hajoale ho 63A bakeng sa ts'ireletso e feteletseng le ea nako e khuts'oane hammoho le ho chencha hangata maemong a tloaelehileng. E sebelisoa haholo indastering, khoebong le malapeng.Sehlahisoa sena se lumellana le IEC60898 standard. 3.RCCB e lumellana le litekanyetso tsa IEC61008.E ka khaola potoloho ea phoso hang-hang ha ho e-na le kotsi ea ho tsosoa kapa ho lutla ha lefatše la trunkline.Ka hona ho loketse ho qoba kotsi le mollo o bakoang ke ho lutla ha lefats'e.E ka sebelisoa lipotolohong ho fihlela ho karolo e le 'ngoe ea 240V, karolo e meraro ea 4015V kapa 4015V, 50H 60H, 50H

Mohlala:DZ47LE-63

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Litlhaloso:

RCBO

	Standard	Yuniti	IEC/EN 61009-1
Motlakase	Mokhoa		Mofuta oa elektronike
Likaroloana	Mofuta (mofuta oa leqhubu la ho lutla ha lefatše ho utloahala)		A, AC
	Tšobotsi ea ho lokolloa ha Thermomagnetic		B,C,D
	E lekantsoe hajoale ln	A	6,10,16,20,25,32,40,63
	Lipalo	P	1P+N, 3P+N
	Rated voltage Ue	V	AC 230,400
	E lekantsoe sensitivity I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	E lekantsoe mesaletsa ea ho etsa le ho senya bokhoni l△m	A	500
	E lekantsoe matla a potoloho e khuts'oane Icn	A	6000
	Nako ea khefu tlas'a I△n	S	≤0.1
	E lekantsoe khafetsa	Hz	50/60
	E lekantsoeng ka matla a ho mamella khatello ea maikutlo (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind.Freq bakeng sa 1min	kV	2
	Insulation voltage Ui	V	250
	Tekanyo ea tšilafalo		2
Likarolo tsa mochini	Bophelo ba motlakase		4000
	Bophelo ba mechine		10000
	Phoso ea hona joale Indicator		EE
	Tekanyo ea ts'ireletso		IP20
	Mocheso oa tikoloho	ºC	-5~+40(Kopo e khethehileng ka kopo, sheba ho
	(ka karolelano ea letsatsi le letsatsi≤35ºC)	ºC	tokiso ea matšeliso a mocheso)
	Mocheso oa polokelo	ºC	-25 ~ +70
Ho kenya	Mofuta oa khokahano ea terminal		Busbar ea mofuta oa Cable/Pin-type/U-type busbar
	Boholo ba terminal holimo/tlase bakeng sa thapo	mm2	25
	Boholo ba terminal holimo/tlase bakeng sa thapo	AWG	5月18日
	Seteishene sa boholo bo holimo/tlase bakeng sa busbar	mm2	25
	Seteishene sa boholo bo holimo/tlase bakeng sa busbar	AWG	3月18日

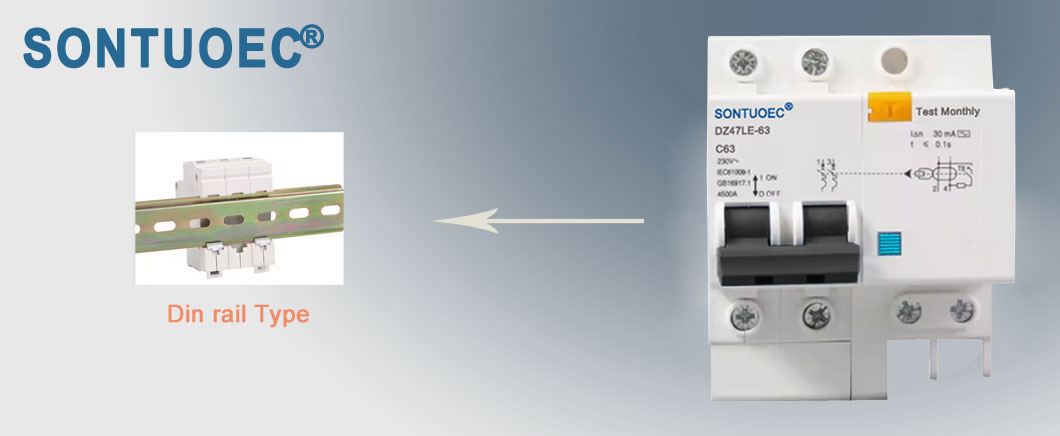

	Ho phahamisa		Seporong sa DIN EN 60715(35mm) ka sesebelisoa sa clip se potlakileng
	Khokahano		Ho tloha holimo

Roduct Over View:

1. Fana ka tšireletso khahlanong le phoso ea lefats'e / leakage ea hona joale le mosebetsi oa ho itšehla thajana

2. High short-circuit current current capacity3. E sebetsa ho terminal le khokahano ea busbar ea mofuta oa pin/fork

5. Hakolla potoloho ka bo eona ha ho hlaha phoso ea lefats'e / leakage mme e feta kutloisiso e lekantsoeng.

6. E ikemetseng ea phepelo ea motlakase le motlakase oa mohala, 'me e se na tšitiso ea kantle, ho fetoha ha motlakase.

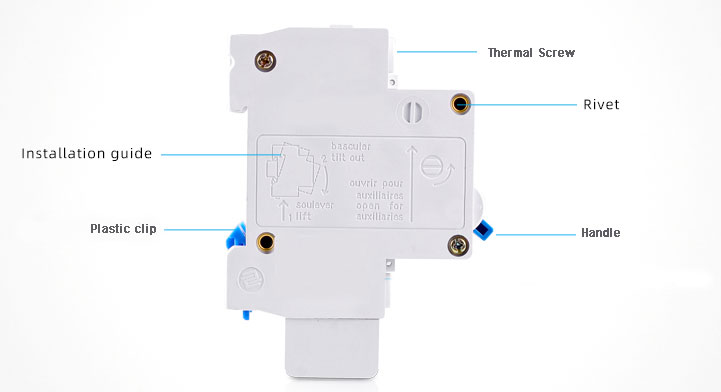

MCB

Mohlala	MCB
Standard	IEC60898-1
Pole	1P,2P,3P,4P
Tripping Curve	B,C,D
E lekantsoe Short-circuit capacity(Icn)	3KA,4.5KA,6KA,10KA
E hlophisitsoe hajoale(Ka)	1,2,4,6,10,16,20,25,32,40,50,63A
Rated Voltage(Un)	AC230(240)/400(415)V
Ho lokolloa ha makenete	B curve: lipakeng tsa 3 le 5 In
	B curve: lipakeng tsa 3 le 5 In
	C kobeha: pakeng tsa 5 le 10in
	C kobeha: pakeng tsa 5 le 10in
	D mothinya: pakeng tsa 10 le 14In
	D mothinya: pakeng tsa 10 le 14In
Mamello ea motlakase	ho feta 6000 cyclesC

RCCB


	Standard	Yuniti	IEC/EN 61008-1
Motlakase	Mofuta (mofuta oa leqhubu la ho lutla ha lefatše ho utloahala)		AC, A
Sebopeho	Rated current In	A	16,25,32,40,63
	Lipalo	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.01,0.03,0.1,0.3
	Insulation voltage Ui	V	500
	Rated residual making le	A	630
	ho senya bokhoni Ke m
	Short-circuit current I c	A	4500/6000
	SCPD fuse	A	6000
	Nako ea khefu tlas'a I n	s	<0.1
	E lekantsoe khafetsa	Hz	50/60
	Tekanyo ea tšilafalo		2
MechanicaI	Bophelo ba motlakase	t	4000
Likaroloana	MechanicaI Iife	t	20000
	Letšoao la hona joale la phoso		Ee
	Tekanyo ea ts'ireletso		IP20
	Mocheso oa tikoloho	C	Ho tloha -25C ho isa ho 40C
	(ka karolelano ea letsatsi le letsatsi 35)
	Mocheso oa polokelo	C	Ho tloha -25C ho isa ho 70C

LBH

Q 1. nako ea tefo ke efe? A. Re amohela TT, 30% deposit le 70% ho leka-lekana khahlanong le kopi ea BL

Q 2. nako ea ho pepa e kae?

A. hangata ho tla nka matsatsi a ka bang 25 bakeng sa tlhahiso

Q 3. mpolelle maemo a sephutheloana?

K. Ka tloaelo ke mabokose, empa hape re ka a paka ho latela tlhoko ea hau.

Q 4.Na u ka amohela ho sebelisa logo ea rona?

A. Haeba u na le bongata bo botle, ha ho na bothata ho etsa OEM.

Q5. A na nka nka lisampole?

A: Ho joalo, re tšehetsa ho nka lisampole pele u beha odara. Ikutloe u lokolohile ho ikopanya le rona haeba u na le litlhoko leha e le life.

Q6. Na u Factory ea mantlha?

A: E, re na le feme ea rona .

Q7. U ka etsa bonnete ba hore boleng ba lihlahisoa ke bofe?

A: Re tla lumellana le maemo a machaba a boleng ho hlahloba ntho e 'ngoe le e 'ngoe pele re tloha fekthering ea rona. Ikopanye le Rea leboha ha u bala. Haeba sehlahisoa sefe kapa sefe se kopana le tlhoko ea hau. Rea u amohela ho re romella lengolo-tsoibila kapa ka Wechat le WhatsApp. Re na le bonnete ba hore tlhahisoleseling efe kapa efe ea hau e ka eloa hloko ntle le tieho.
