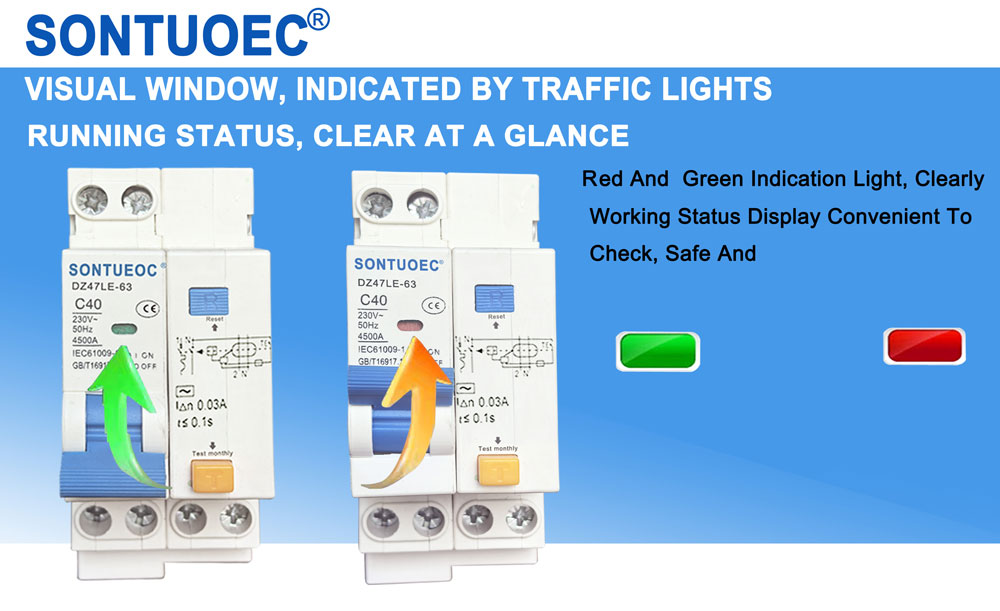

Dz47le-63 RCBO Series Leakage Current Circuit Breaker

SONTUOEC ke e mong oa barekisi/baetsi ba Machaena ba sebetsanang le tlhahiso ea lisebelisoa tse fapaneng tse fapaneng tsa motlakase. 4 pole mme e filoe lintlha hona joale ho fihla ho 63A. E ka sireletsa lithapo le motoro ho se keng sa tlala haholo le potoloho e khutšoane hape e ka sebelisoa ho fetolela khafetsa le ho qala hapeha ha koloi e qala.E lumellana le litekanyetso tsa IEC61009.1.

Mohlala:DZ47LE-63

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

Litekanyetso tsa Tekheniki:

Rated Voltage(V)	E Lekanyelitsoe Hona Joale ea Case Inm(A)	Lipalo	Neutra	E lekantsoe CurrentIn(A)	Rated Short Circuit Breaking Capacity Icu(KA)		Rated Current Leakage Breaking Current	E lekantsoe Hona Joale Ha e Senyehe (mA)
Rated Voltage(V)	E Lekanyelitsoe Hona Joale ea Case Inm(A)	Lipalo	Linel	E lekantsoe CurrentIn(A)	Breaking Capacity Icu(KA)	COS	(mA))	E lekantsoe Hona Joale Ha e Senyehe (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

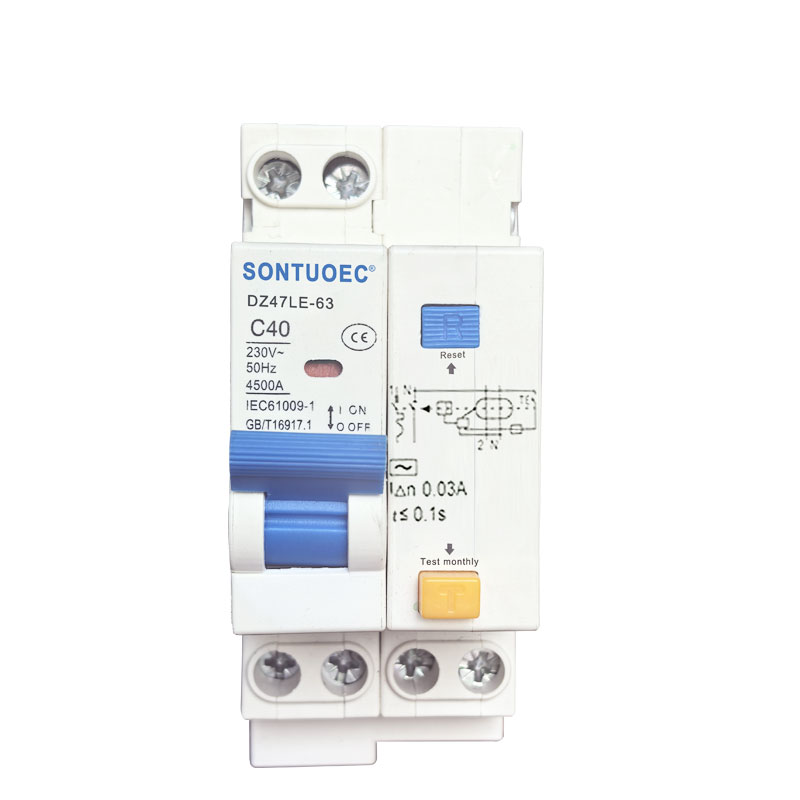

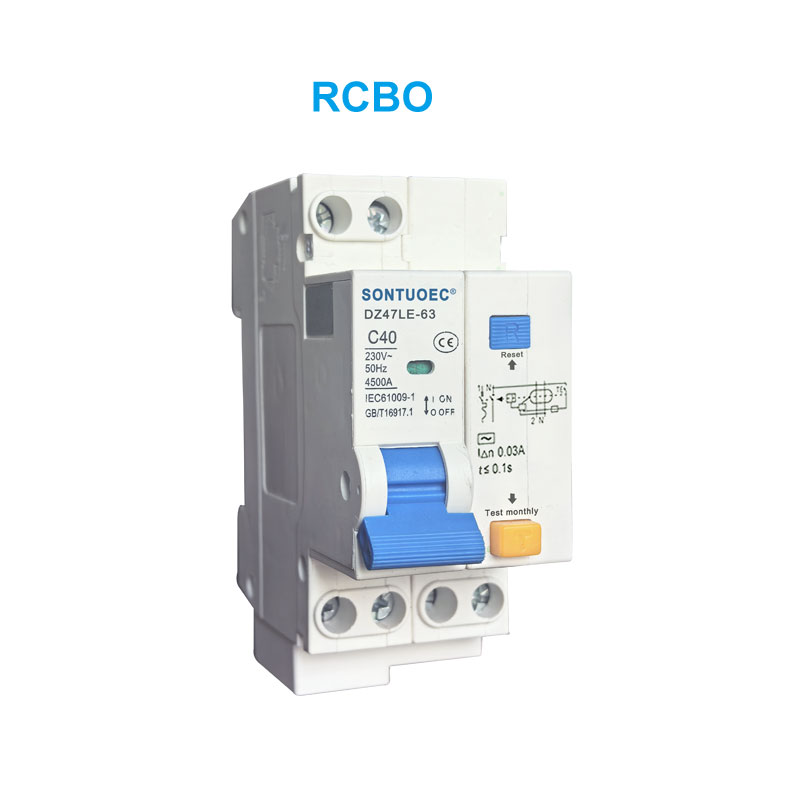

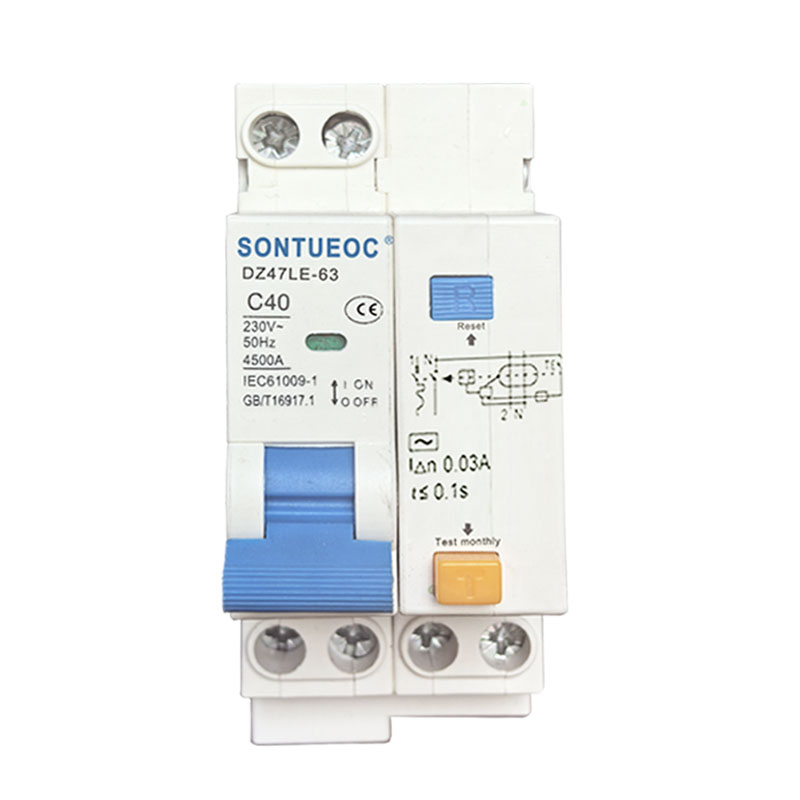

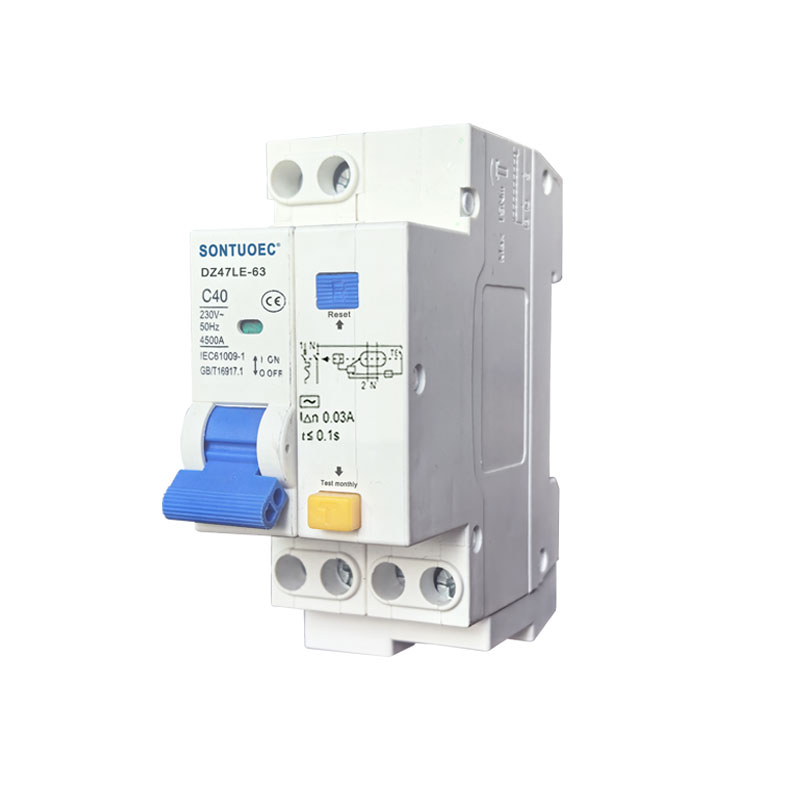

DZ47LE Residual Current Operated Circuit Breaker e nang le tšireletso e feteletseng (Elektronike):

1. Kopo

Tšireletso ea basebetsi le mollo

Tšireletso ea lithapo le lithapo khahlano le boima bo feteletseng le li-circuits tse khutšoane

2. Melao e akaretsang ea ho khetha RCBO:

a.Rated residual operation current

Ho ≤ 30 mA: tšireletso e eketsehileng tabeng ea ho kopana ka ho toba Ho ≤300 mA: ts'ireletso e thibelang mollo ha ho e-ba le maqhubu a fatše

b. Tlelase ea ho khotha

Sehlopha sa AC - Ho khothatsoa ho netefatsoa bakeng sa maqhubu a sinusoidal, a chenchana, hore na a sebelisoa kapele kapa a eketseha butle.

c. Mokokotlo o khopang

C curve (5-10 In) ts'ireletso le taolo ea lipotoloho khahlano le meroalo le lipotoloho tse khutšoane; tshireletso bakeng sa meroalo e hanyetsanang le e inductive e nang le inrush e tlase hona joale.

D curve (10-14 In) ts'ireletso le taolo ea lipotoloho khahlano le meroalo le li-circuits tse khutšoane; tshireletso bakeng sa lipotoloho tse fanang ka meroalo e nang le inrush e phahameng hona joale ha ho koaloa potoloho (li-transformer tsa LV/LV, mabone a robehileng).
