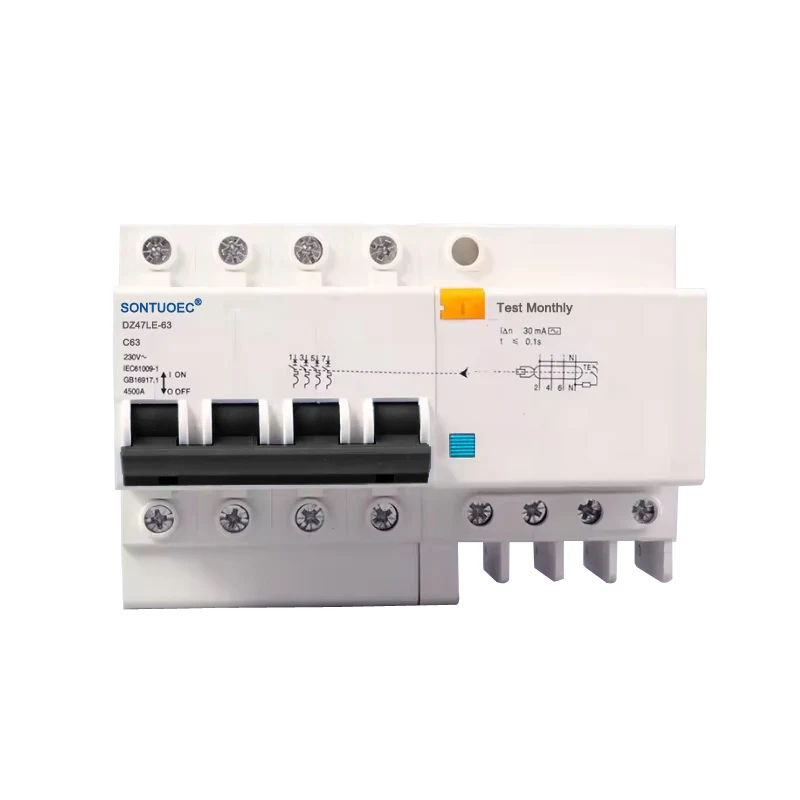

Mofuta oa 4P RCBO AC

4P RCBO AC Type ke 4-pole circuit breaker e kopanyang ts'ireletso ea hona joale e setseng le ts'ireletso e feteletseng, haholo-holo e etselitsoeng li-circuits tsa hona joale (AC). E ka khaola phepelo ea motlakase ka bo eona ha masala a motlakase (ke hore, leakage current) a bonoa potolohong ho thibela mello ea motlakase le likotsi tsa motho ka mong. Ka nako e ts'oanang, e boetse e na le ts'ebetso ea ts'ireletso ea overcurrent e ka felisang motlakase ka tsela e iketsang ha ho e-na le boima bo feteletseng kapa bo khutšoanyane ho potoloha ho sireletsa tšireletso ea potoloho le lisebelisoa.

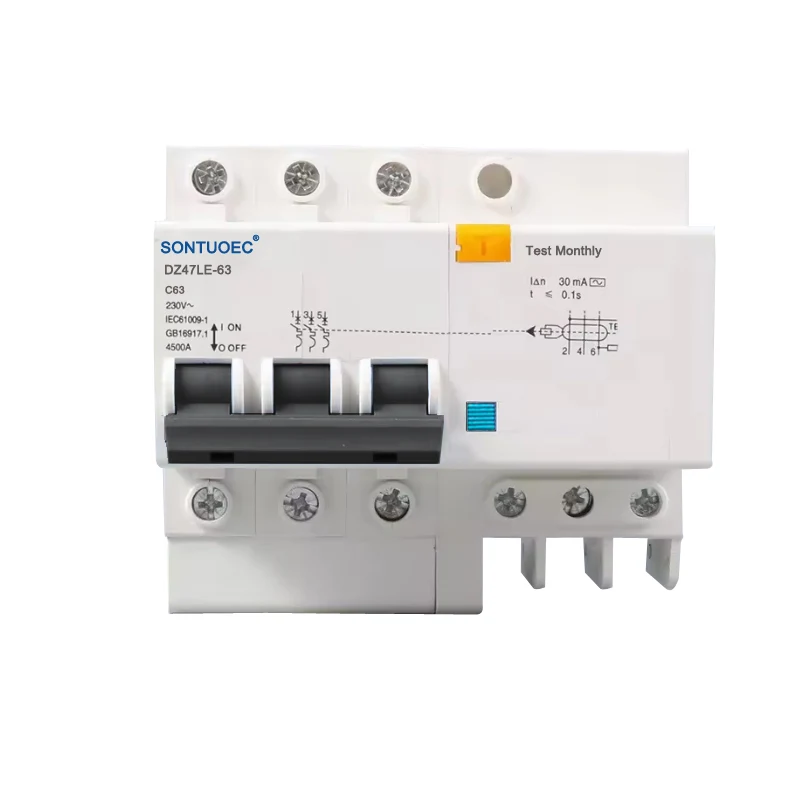

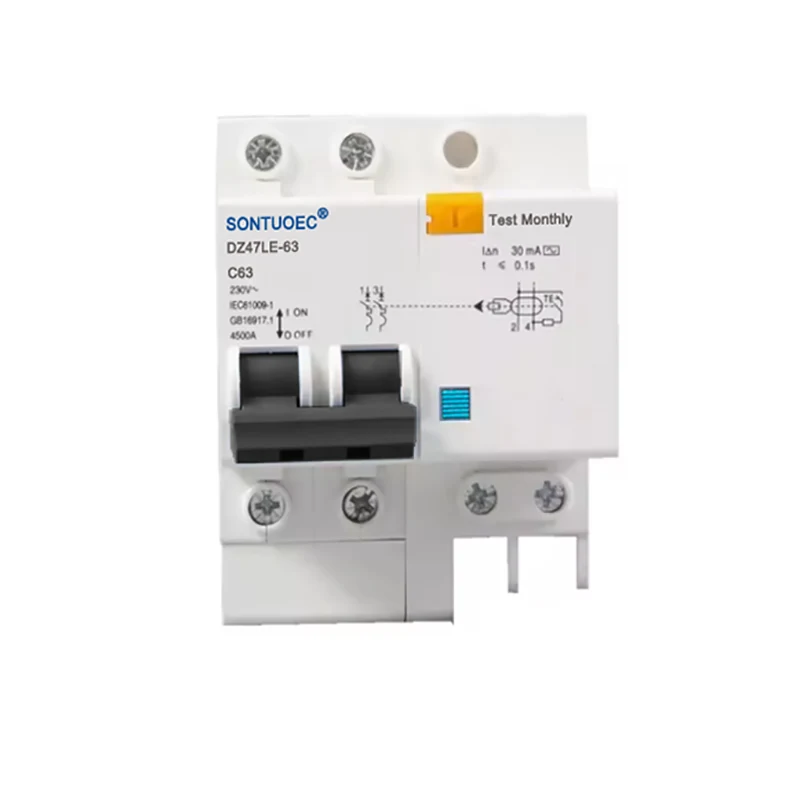

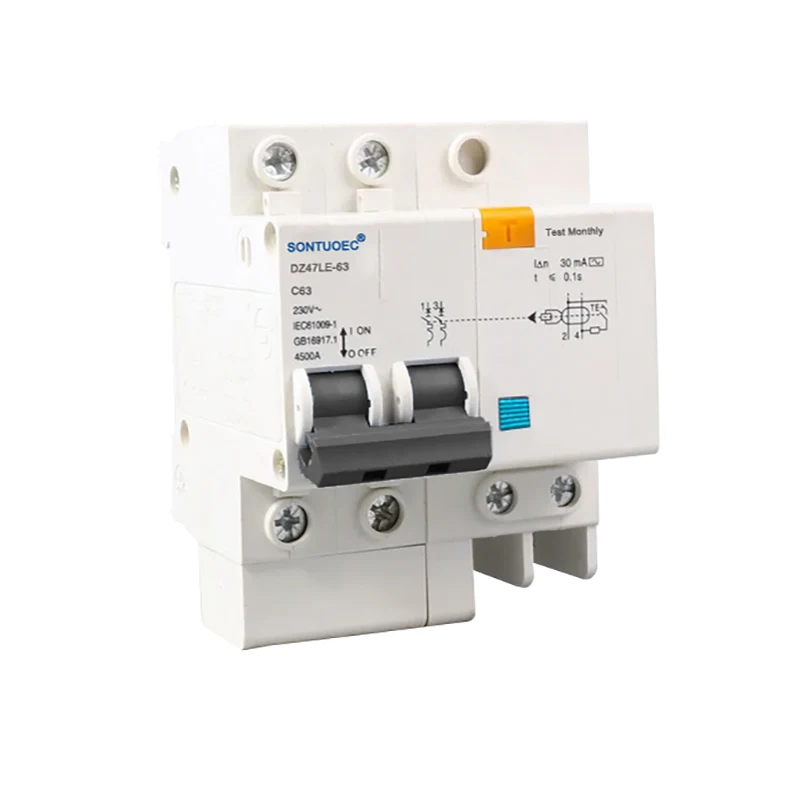

Mohlala:DZ47LE-63

Romela Lipatlisiso

Tlhaloso ea Sehlahisoa

lebitso	Residual Circuit Breaker e nang le Tšireletso ea Overcurrent
Likaroloana	overload/ short circuit/ tshireletso ya ho dutla
Pole No	1P/2L, 2P/2L, 3P/3L, 3P/4L 4P/4L
Ho roba Bokhoni	3kA,4.5KA,6KA
E fanoe ka Hona joale(A)	6A,10A,16A,20A,25A,32A, 40A,63A
E lekanyelitsoe ka nako e setseng ea tšebetso:	10mA,30mA,100mA,300mA,500mA
E lekantsoe Voltage(V)	240/415v
ho kenya	mofuta oa seporo
maemo	IEC61009-1, GB16917-1
setifikeiti	CE

Molao-motheo oa ts'ebetso

Molao-motheo oa ts'ebetso oa Mofuta oa 4P RCBO AC o ipapisitse le kakaretso ea vector ea maqhubu le melao-motheo ea motlakase. Ha maqhubu a potoloho mollong (L) le zero (N) lithapo ha li lekane ka boholo, palo ea vector ea maqhubu a ka lehlakoreng le ka sehloohong la potoloho ea transformer hase zero, e leng hlahisa gagamalo hlohlelletsoa ka lehlakoreng la bobeli khoele. Matla ana a hlahisoang a eketsoa ho relay ea electromagnetic, e hlahisang maqhubu a hlasimollang a hlahisang matla a reverse demagnetizing. Ha phoso ea hona joale e fihla ho boleng ba hona joale ba RCBO, matla ana a reverse demagnetizing a tla etsa hore armature e ka hare ho relay ea motlakase e itokolle jokong, e sutumelletsa mochine o sebetsang hore o sebetse le ho khaola potoloho ea hona joale ea phoso.

DZ47LE-63 letoto la elektronike lefatše leakage tshireletso ya potoloho breaker e loketse bakeng sa karolo e le 'ngoe ea bolulo potoloho ea AC 50Hz/60Hz, rated voltage 230V, le rated hona joale 6A ~ 63A; 400V bakeng sa potoloho ea mekhahlelo e meraro ea AC 50Hz/60Hz. E ka sireletsa boima ba foromo ea potoloho le potoloho e khuts'oane. Sehlahisoa sena se na le melemo ea molumo o monyenyane, bokhoni bo phahameng ba ho senya, terata e phelang le mohala oa zero o khaotsoe ka nako e le 'ngoe, hape o sireletsa motho ho tloha ho ts'oaetso ea motlakase tabeng ea terata ea mollo le mohala oa zero o kopantsoeng ka morao.

E lumellana le maemo a tloaelehileng a IEC61009-1, GB16917.1.

Sebopeho:

1) .E fana ka tšireletso khahlanong le ts'oaetso ea motlakase, phoso ea lefats'e, hona joale ea ho lutla;

2) .E fana ka tšireletso khahlanong le boima bo feteletseng, bo khutšoanyane le ho feta-voltage;

3). Molumo o monyenyane, bokhoni bo phahameng ba ho senya; terata e phelang le line ea zero li khaotsoe ka nako e le 'ngoe;

4). Boholo bo nyane le boima ba 'mele, ho kenya habonolo le lithapo, ts'ebetso e phahameng le e tšoarellang

5). Fana ka ho khoptjoa ha misoperation ho bakoang ke motlakase oa hang-hang le hona joale.

Likarolo le Melemo

Tšireletso ea mesebetsi e mengata: Mofuta oa 4P RCBO AC o kopanya tšireletso ea hona joale e setseng le tšireletso e feteletseng ho fana ka tšireletso e feletseng bakeng sa lipotoloho le lisebelisoa.

Kutloelo-bohloko e phahameng: Tšireletso e matla haholo khahlano le ts'ebeliso ea tšohanyetso kapa ho phahama butle ha sinusoidal AC hona joale e netefatsa ho arohana.

Mefuta e mengata ea ts'ebeliso: E loketse lipotoloho tsa AC tsamaisong ea kabo ea matla ea malapeng, ea indasteri le ea khoebo, haholo-holo bakeng sa mohala o le mong oa mollo o le mong-zero.

Ho bonolo ho kenya le ho boloka: moralo o utloahalang oa moralo, o bonolo ho o kenya, 'me ka nako e ts'oanang ho bonolo ho o phethahatsa le ho o lokisa.

Maemo a Kopo

4P RCBO AC Type e sebelisoa haholo bakeng sa tšireletso ea potoloho ea AC malapeng, liofising, meahong ea khoebo le litsing tsa indasteri. E loketse ka ho khetheha bakeng sa lits'ebetso tse hlokang ts'ireletso ea lithapo tsa Mollo le Zero, joalo ka li-circuits tsa mabone, li-circuits tsa socket le ts'ireletso ea lisebelisoa tse kang li-motors.

4P RCBO AC Type
